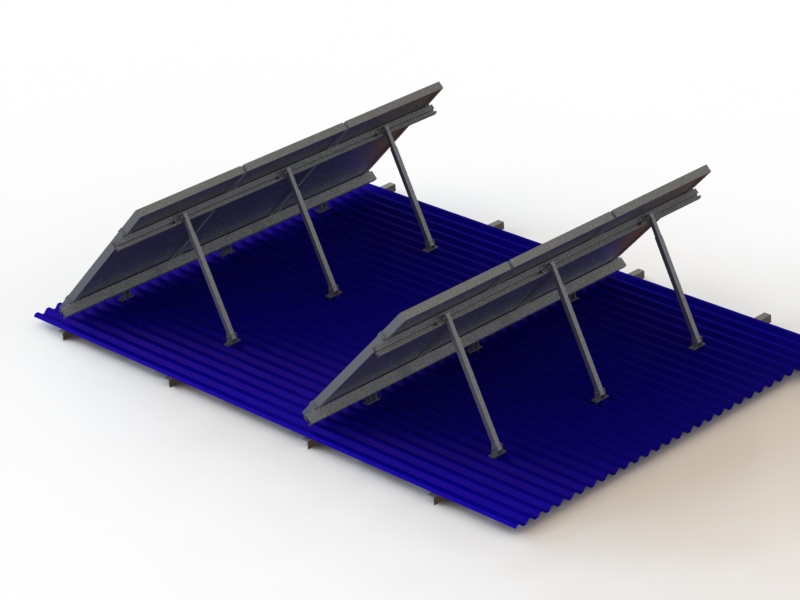

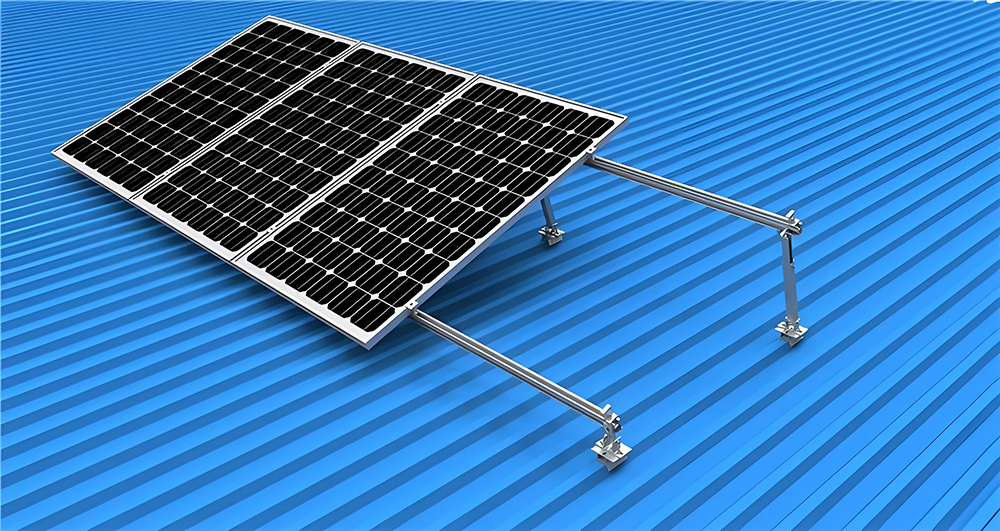

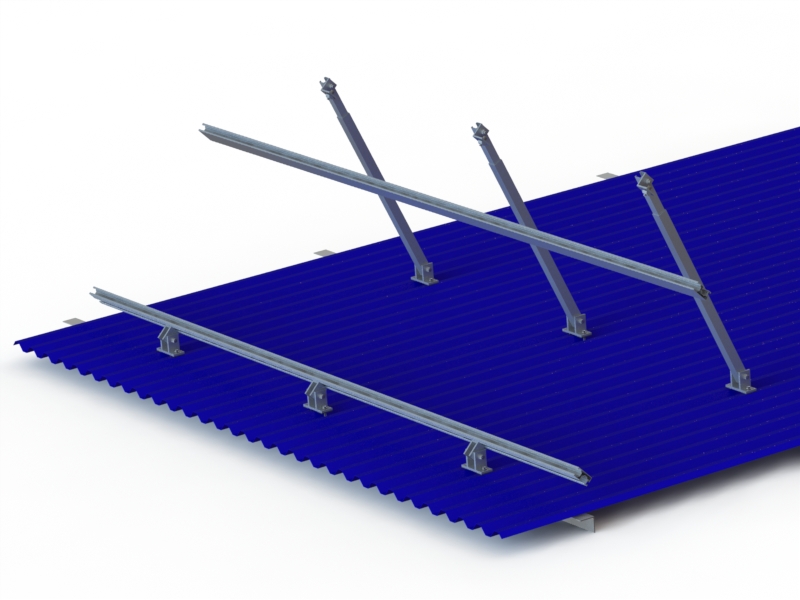

ADJUSTABLE ANGLE ROOF MOUNTING SYSTEM

Adjustable Racking System has developed to mount the module tilt a certain angle
on a flat roof or ground. You can have the adjustable angle solution as 10°‐15°, 5°‐30°
and 30°‐60° according to your exact requirement. The special extruded aluminum rail,
tilt‐in module, clamps and legs should be pre‐assembled to make the installation easy
and quick for saving your labor cost and time. Besides, the customized length of rail will
not require onsite weld and cut, keeping the appearance entirety, structural strength and
anticorrosive performance.

Email: info@yooyienergy.com

WhatsApp: 86-15259234267

Inquiry Now

Still deciding? Get samples first, Contact US !

Features
- Flexibility in angle adjustment
- Adaptability to different terrains
- Enhanced structural stability
- Improved solar panel efficiency
- Easy installation and maintenance
- Durability and weather resistance
- Cost-effectiveness
- Compatibility with various panel sizes
Parameter table
Technical Parameter

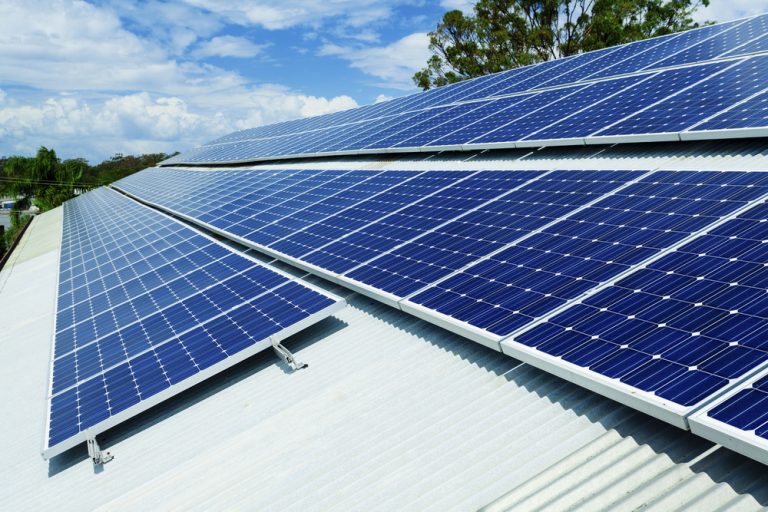

Application: Metal Roof
Wind Load: ≤60m/s
Snow Load: ≤1.8 KN/m²
Model Orientation: Landscape/Portrait
Standards: AS/NZ 1702.2,DIN1055
Material: Al6005-T5 & SUS304
Warranty: 10 years
Guarantees & Service
All components are made of aluminum. The high corrosion resistance guarantees maximum service life and can be fully recycled. We give you 10 years warranty on our mounting systems.

Technical Parameter
Application:	Metal Roof
Wind Load:	≤60m/s
Snow Load:	≤1.8 KN/m²
Model Orientation:	Landscape/Portrait
Standards:	AS/NZ 1702.2,DIN1055
Material:	Al6005-T5 & SUS304
Warranty:	10 years

Compoments

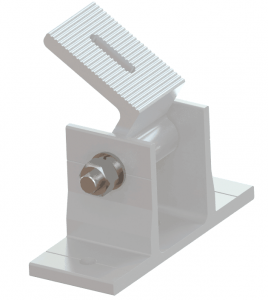

Front Leg Kit

Front Leg Kit & Rail Ingoot kit

Al6005-T5&SUS304&EPDM

Wood Screw

Rear Leg Kit

Rear Leg Kit&Rail ingot kit

Al6005-T5&SUS304&EPDM

Wood Screw

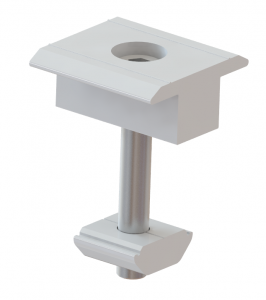

Middle Clamp Kit

30/35/40mm

Silver and Black optional

End Clamp Kit

30/35/40mm

Silver and Black optional

Rail

Aluminum 6005-T5

Silver and Black optional

Rail Splice

Aluminum 6005-T5

Silver and Black optional

Built To Last

Constructed with high-grade aluminum alloy and stainless steel components, our mounting system is engineered to withstand harsh weather conditions and maintain structural integrity for over 25 years. Modular design with pre-assembled components reduces installation time by up to 40%. The system can be installed by a small team with basic tools, minimizing labor costs and project timeline.We stand behind our product with an industry-leading 10-year warranty covering all components, including brackets, rails, and hardware against manufacturing defects and material failures.

Cliplock Types

Customized Service
